The Unseen Guardian of the Modern Factory
In the world of industrial automation, speed, precision, and uptime are king. But reigning over them all is a non-negotiable principle: safety. As robotic systems become more powerful and integrated into human workflows, the methods used to protect personnel must evolve beyond physical cages. This is where advanced presence-sensing technology becomes critical. Area laser scanners represent the pinnacle of flexible, intelligent safeguarding, creating dynamic virtual barriers that adapt to the operational needs of a facility.
Today, we’re putting a spotlight on a core component of this safety ecosystem: the NexBot Vision 332-003 Laser Safety Scanner. This compact yet powerful device is engineered to provide reliable hazard protection without the restrictive footprint of traditional hard guarding, enabling more efficient and collaborative automated environments.
Core Capabilities of the Vision 332-003
The Vision 332-003 is more than just a sensor; it's a sophisticated safeguarding solution designed for the rigors of the industrial floor. It operates on the principle of time-of-flight measurement, emitting pulses of infrared laser light and measuring the time it takes for them to reflect off an object. This allows it to precisely map its surroundings and detect any intrusion into predefined safety zones.
Let's break down the key technical specifications that make it a standout choice for system integrators and safety engineers:
- Expansive Protective Field: The scanner offers a substantial 5.5-meter protective field range. This generous range makes it suitable for safeguarding large machine perimeters, the entry points of robotic work cells, or the entire operational area of a mobile robot.
- Wide Scanning Angle: With a 275° scanning angle, the Vision 332-003 provides comprehensive coverage with minimal blind spots. A single unit can often monitor an area that would otherwise require multiple light curtains or other sensing devices, simplifying installation and reducing costs.
- Flexible Zone Configuration: The true power of a laser scanner lies in its programmability. The Vision 332-003 allows users to configure complex detection zones, including both warning fields and protective fields. An object entering the outer warning field can trigger an audible alarm or slow the machine's operation, while an intrusion into the inner protective field triggers an immediate safe stop. This graduated response system maximizes both safety and productivity.
- Seamless Network Integration: The device communicates over PROFINET, a leading industrial Ethernet protocol. This enables high-speed, reliable communication with the central safety PLC. Integration is streamlined, and valuable diagnostic data can be transmitted in real-time, allowing for predictive maintenance and faster troubleshooting. Operating on a standard 24VDC supply, it integrates effortlessly into existing control cabinets.
Applications in Action: Where the Vision 332-003 Excels
The versatility of the NexBot Vision 332-003 allows it to be deployed in a wide array of automation scenarios.
Stationary Area Guarding
This is the most common application. The scanner is mounted to monitor the floor space around a robotic arm or other hazardous machinery. It creates an invisible curtain that, when breached by a person or forklift, brings the machine to a safe state. Its wide scanning angle is perfect for protecting the open sides of a work cell, allowing for easy material loading and unloading when the system is stopped.
Access Protection
For vertical applications, the scanner can be mounted to monitor an access point, effectively acting as a flexible light curtain. It can differentiate between material passing through on a conveyor and a person attempting to enter a hazardous area, ensuring processes continue uninterrupted while personnel remain safe.
Mobile Robot Safety
In logistics and manufacturing, Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) are becoming commonplace. The Vision 332-003 is an ideal solution for mounting on these vehicles. It scans the path ahead, detecting obstacles and people, allowing the mobile robot to slow down, stop, or navigate around the obstruction safely.
Building a Comprehensive Safety and Maintenance Strategy
Effective industrial safety is a holistic discipline. While a powerful component like the Vision 332-003 is a cornerstone, it works best as part of a complete system that includes robust programming, secure assembly, and ongoing training.

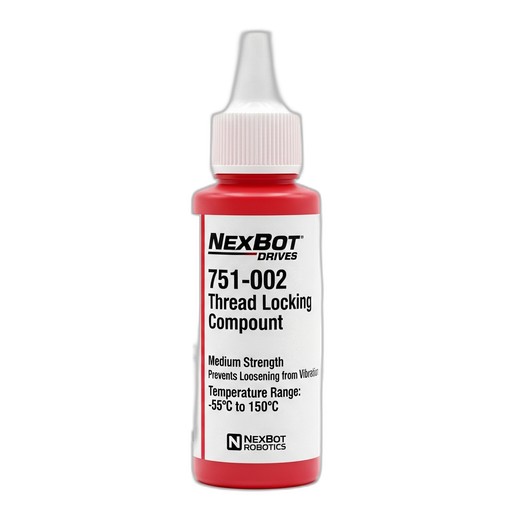

Reliable operation begins at the component level. During installation and maintenance, ensuring that critical hardware like sensors and motor mounts remains secure is paramount. Vibration is a constant in any industrial environment. Using a product like the NexBot Drives 751-002 Thread Locking Compound on mounting fasteners prevents them from loosening over time, guaranteeing that safety devices remain perfectly aligned and operational.
Furthermore, the most advanced hardware can be compromised by flawed logic. A robot's programming dictates its every move, including its response to safety inputs. That’s why comprehensive training is indispensable. The NexBot Robotics Advanced Robot Programming Training Course (NXB-TRN-913-004) equips engineers with the skills to write structured, failsafe logic. Understanding how to properly integrate signals from a safety scanner into the robot's motion and logic control is a skill that turns a collection of parts into a truly safe and compliant system.
By combining state-of-the-art hardware like the Vision 332-003 scanner with best practices in mechanical assembly and advanced programming knowledge, you create a multi-layered safety culture that protects your most valuable asset: your people.
