The Human-Robot Interface: More Than Just a Controller
In the world of industrial automation, the conversation often centers on the robot arm itself—its payload, reach, and speed. While these are critical metrics, the true potential of an automated system is unlocked through the interface that bridges human intent and robotic action. This crucial link is the teach pendant, a handheld device that gives operators, technicians, and engineers direct, granular control over complex machinery. It transforms abstract programming into tangible motion, making it an indispensable tool on the factory floor. A well-designed teach pendant is not merely a peripheral; it is the command center for setup, operation, and maintenance, directly impacting efficiency, safety, and the accessibility of robotic technology to a wider range of personnel.
At NexBot Robotics, we believe that empowering the operator is paramount to achieving operational excellence. That's why we engineered the NexBot Drives 222-002 Teach Pendant, a device designed from the ground up to be intuitive, robust, and safe. It represents a leap forward in HMI (Human-Machine Interface) technology, simplifying complex tasks and putting powerful control directly into the hands of the user.

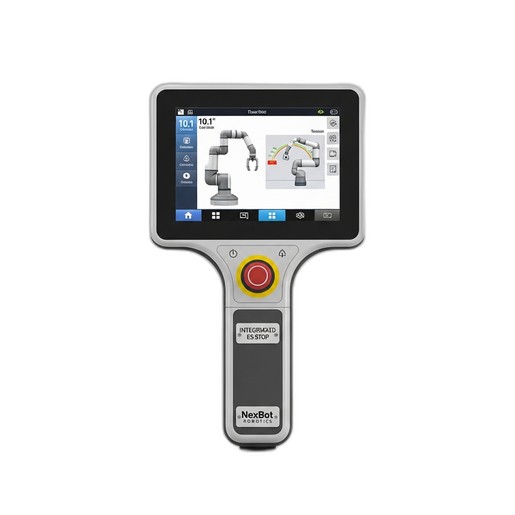

Unboxing the NexBot Drives 222-002: Ergonomics Meets Durability
First impressions matter, especially for a tool that will be used for hours at a time. The NexBot 222-002 is built with the operator in mind. Its ergonomic form factor is designed to reduce fatigue during long programming sessions or complex troubleshooting procedures. The lightweight yet ruggedized construction ensures it can withstand the demanding conditions of an industrial environment.
The centerpiece of the device is its responsive 10.1-inch color touchscreen. This vibrant, high-resolution display provides a clear and expansive workspace for our intuitive user interface. It allows for complex path programming, system configuration, and real-time diagnostic feedback to be viewed without compromise. The capacitive touch technology ensures a smooth, tablet-like experience, even when the user is wearing standard work gloves.
Safety is non-negotiable in robotics. The 222-002 Teach Pendant features a prominently located, integrated 3-position E-stop button. This critical safety component provides a reliable, immediate way to halt robot motion in an emergency, conforming to global safety standards. Its three positions—off, on, and squeezed-off—provide an extra layer of protection against accidental activation or operator incapacitation, ensuring that the machine remains in a safe state under all conditions.
Intuitive Software for Effortless Programming
Powerful hardware is only half the equation. The software driving the NexBot 222-002 is designed to lower the barrier to entry for robot programming. The graphical user interface (GUI) uses a clean, logical layout with universally understood icons, minimizing the learning curve for new operators and reducing the time from installation to production. Instead of writing complex lines of code, users can create intricate robot paths through simple drag-and-drop commands, jogging the robot into position using on-screen controls and saving waypoints with a single tap.
This streamlined workflow not only accelerates deployment but also democratizes robot operation. Maintenance technicians can confidently perform routine tasks, and line operators can make minor adjustments without needing to call in a dedicated robotics engineer. The pendant provides access to detailed logs and real-time diagnostic data, transforming it from a simple controller into a powerful troubleshooting tool.
Integrating a Smarter Cell: The Role of Advanced Sensors

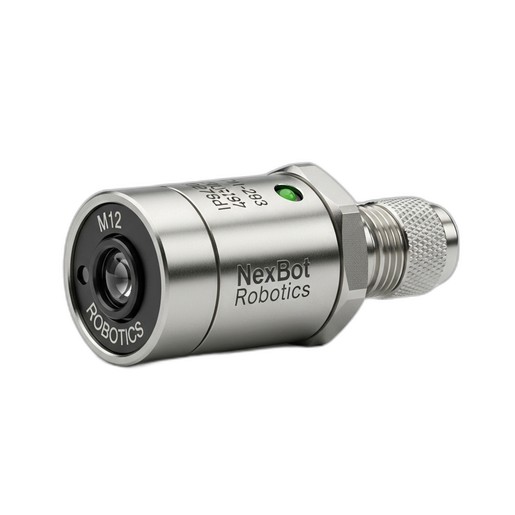

A robot's intelligence is defined by its ability to perceive its environment. The teach pendant serves as the window into this perception. It visualizes data from a network of sensors that give the robot its senses. A prime example is the NexBot Robotics 331-001 Inductive Proximity Sensor. This compact M12 sensor is the robot's sense of touch for non-contact applications, reliably detecting the presence of metallic objects within its 4mm shielded sensing range.
From the 222-002 Teach Pendant's interface, an operator can monitor the status of every 331-001 sensor in the cell. Is a part correctly positioned in a fixture? Has a safety gate been closed? This real-time feedback is displayed clearly on the screen, allowing for quick verification and troubleshooting. The sensor's rugged IP67-rated housing ensures it operates flawlessly even in harsh environments with dust or moisture, while its IO-Link protocol allows for rich data exchange, providing more than just a simple on/off signal. This advanced diagnostic information can be accessed directly through the pendant, helping to pinpoint issues faster and reduce downtime.
Maximizing Uptime: The Synergy of Control and Maintenance
The most advanced robotic system is only effective when it's running. Proactive maintenance is key to maximizing uptime and extending the life of your automation investment. The NexBot 222-002 Teach Pendant is a vital tool in this process, but the tool is only as effective as the team wielding it. This is where a structured approach to training becomes essential.
The NexBot Drives 921-002 Preventive Maintenance Plan is an instructor-led training course designed to equip your maintenance team with the skills they need to keep your systems at peak performance. This service plan goes beyond user manuals, providing hands-on instruction in critical areas like safe servo motor replacement, advanced diagnostics using the teach pendant, and the standardization of maintenance workflows across your facility. By investing in this training, your team learns to interpret the diagnostic data they see on the 222-002 pendant, allowing them to move from a reactive 'fix-it-when-it-breaks' model to a proactive, preventive strategy. This synergy between an intuitive interface, reliable components, and a well-trained team is the formula for achieving world-class operational equipment effectiveness (OEE).
Conclusion: Empowering Your Team for Peak Performance
The NexBot Drives 222-002 Teach Pendant is more than just a controller; it's the cornerstone of an efficient, safe, and productive robotic cell. By combining its ergonomic design and intuitive software with the reliable perception of sensors like the NXB-SNS-331-001 and the expert knowledge imparted by the NXB-KIT-921-002 training plan, you create a holistic automation ecosystem. You empower your team with the tools and skills to not only operate your robotic systems but to master them, driving continuous improvement and ensuring a robust return on your investment for years to come.
