The Challenge of Heavy Payload Automation
In today's competitive manufacturing landscape, the demand for automation that can handle heavy, bulky, and demanding tasks is greater than ever. From automotive assembly lines to foundry operations and end-of-line palletizing, industries require robotic solutions that offer not just brute strength, but also unwavering precision and reliability. Handling payloads exceeding 100 kg introduces significant engineering challenges, where power, control, and structural integrity must converge perfectly. Meeting these challenges is the NexBot Robotics LA013-001, a 6-axis articulated robot arm designed from the ground up to master high-capacity applications.
This article shines a spotlight on the LA013-001, exploring its core capabilities and the advanced components that empower its class-leading performance. We'll examine how its design addresses the critical needs of heavy industry and why it represents a pivotal solution for facilities looking to scale their automation efforts.
Unpacking the LA013-001: Core Specifications and Capabilities

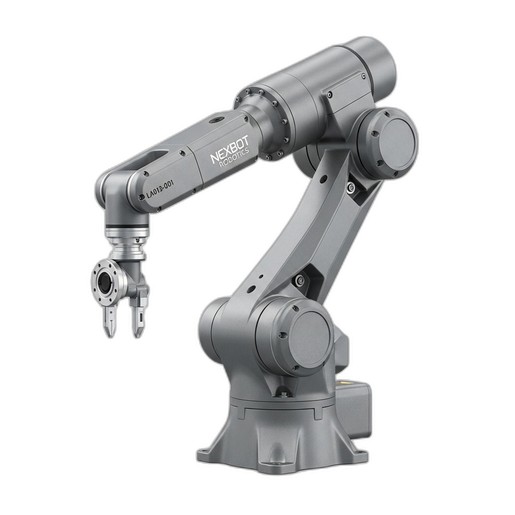

The NexBot Robotics LA013-001 stands out with two headline figures: a 120 kg maximum payload and a 2,655 mm horizontal reach. These specifications position it as a formidable tool for a wide range of applications. The 120 kg payload capacity allows it to handle everything from engine blocks and large castings to fully loaded pallets and heavy welding equipment. This strength eliminates manual handling risks in dangerous environments and ensures consistent, repeatable lifting and placement operations 24/7.
Its expansive 2,655 mm reach provides a large work envelope, making it ideal for servicing multiple machines, reaching across wide conveyors, or stacking pallets to significant heights. This flexibility allows for more efficient cell design, reducing the need for additional transfer systems and minimizing the overall footprint of the automation solution. The combination of high payload and long reach unlocks new possibilities for process optimization in logistics, machine tending, and large-part material handling.
The Heart of Precision: Advanced Drive System Components
A robot's strength is meaningless without precise control. The LA013-001's fluid, repeatable motion is driven by a sophisticated system of high-performance motors and gearboxes. Each of its six axes relies on components engineered for accuracy and durability.
At the core of this system are powerful AC servo motors. A component like the NexServo EcoLine AC25 (NXB-SRV-ACE-025-A) is representative of the technology required to actuate a robot of this scale. These motors provide the high torque necessary to move heavy loads quickly and efficiently, while their integrated encoders deliver precise positional feedback to the robot controller. This closed-loop control ensures that the arm follows its programmed path with microscopic accuracy, a critical factor in applications like CNC machine tending or complex assembly where tolerances are tight.
These motors are designed for the rigors of the industrial environment, operating on standard 3-phase power (400-480VAC for the robot system) and communicating over robust industrial protocols like PROFINET. This ensures seamless integration into existing factory networks and control architectures, simplifying deployment and reducing setup time.
Zero Backlash, Maximum Repeatability: The Role of Harmonic Gearboxes
Translating the raw power of a servo motor into the precise, controlled motion of a robot joint requires a specialized gear reducer. For high-accuracy robotics, harmonic gearboxes are the industry standard, and for good reason. The NexBot Harmonic Gearbox HR-30 (NXB-GBX-HRM-030) exemplifies the principles that make this technology indispensable.
A harmonic gearbox provides very high gear reduction ratios in a compact and lightweight package. Most importantly, it operates with near-zero backlash. Backlash, the tiny amount of play or slop between gear teeth, is the enemy of robotic repeatability. In a multi-axis arm, the backlash from each joint can accumulate, leading to significant positional errors at the end-of-arm tooling. By using a harmonic drive system, the LA013-001 ensures that when the controller commands a position, the arm moves to that exact position—and can return to it again and again with incredible consistency. This high repeatability is essential for maintaining product quality and process stability.
Furthermore, the design of these gearboxes allows for service-friendly maintenance access, a key consideration for minimizing downtime on the factory floor.
Applications in Action: Where the LA013-001 Excels
The robust design and precision engineering of the LA013-001 make it an ideal choice for some of the most demanding industrial sectors:
- Automotive Manufacturing: Handling heavy components like chassis parts, engine blocks, and doors. It can also be used for high-force applications like spot welding or sealant application.
- Foundry and Metal Casting: Safely moving hot, heavy castings from molds to cooling conveyors, withstanding harsh environmental conditions.
- Palletizing and Depalletizing: Stacking heavy bags, boxes, or other containers at the end of a production line. Its long reach allows for building tall, stable pallet patterns.
- Machine Tending: Loading and unloading large workpieces from CNC machines, presses, and injection molding machines, maximizing machine uptime and operator safety.
Conclusion: A New Benchmark for Heavy-Duty Automation
The NexBot Robotics LA013-001 is more than just a powerful robot arm; it is a complete system engineered for performance, reliability, and integration. By combining a high-payload capacity and extensive reach with the precision of advanced components like AC servo motors and harmonic gearboxes, it provides a solution that can transform productivity in heavy industrial applications. For any facility looking to automate demanding material handling, assembly, or processing tasks, the LA013-001 offers a compelling combination of strength, accuracy, and industrial-grade durability.
